ROTZLER TARVOS Pulling Winches

The ROTZLER TARVOS is a new generation of hydraulic driven pulling winches with pulling forces from 100 to 250 kN. It is available as floor standing winch (pulling forces from 150 – 250 kN) as well as side mounted winch (pulling forces 100 and 120 kN).



Standard features:

  • planetary gear
  • single speed version
  • hydraulic motor
  • hydraulically released holding brake
  • counterbalance valve
  • free spool clutch, manually operated



Available Options:

  • 2 drum variants – compact and large drum
  • connection kit for other motors
  • two-speed version with gear ratio of 1:4 or 1:8
  • pneumatically operated freespool clutch
  • drum brake
  • slack rope free wheel
  • pressure roller
  • grooved drum
  • standard ropes with different rope diameters
  • electric rope end signal

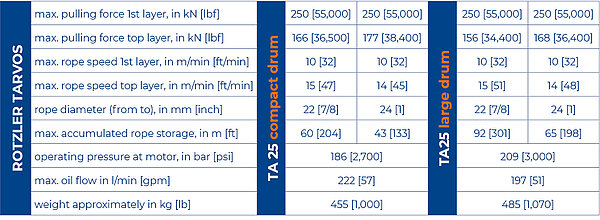

Technical Data floor standing winch

Technical data side mounted winch
